Weighing electronics MAXXIS 4

Freely programmable process controller for a wide range of applications, from simple weighing tasks to complex dosing.

Request this product Download datasheet

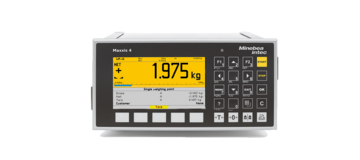

Image of weight controller Maxxis 4.

Colour display

4.3 inch, multilingual intuitive user interface with help function

Interfaces

Ethernet, ModBus, Profibus DP, DeviceNet, ProfiNet, Ethernet/IP, USB

Internal web server

Enables configuration and control via a standard web browser

Backup function

SD card memory for transparency and traceability

Product details Weight controller Maxxis 4

Weighing controllers are weighing indicators with an integrated control function for the automation of weighing processes. The Maxxis 4 weighing controller is a freely programmable process controller for a wide range of applications, from simple weighing tasks to single-component filling and complex dosing. With numerous connection options, compatible with all analogue load cells and the digital Pendeo® load cells as well as platform scales and many other weighing solutions.

Specially developed to fulfil many of the tasks that manufacturers are faced with today, the Maxxis 4 easily takes over the control of all modern automation processes. As a universal device, the Maxxis 4 is pre-programmed to control a wide range of complex applications.

The Maxxis 4 is equipped with an internal web server and can be controlled via any standard web browser or a remote display with VNC capabilities. Furthermore, a wide range of interface options, USB interface and an Ethernet port ensure that the Maxxis 4 is compatible with any existing infrastructure. The compact design in a slide-in housing allows space-saving installation in a control cabinet. The Maxxis 4 offers all the functions that users expect from process technology. The automatic storage of data on an SD card creates backup copies that guarantee transparency and traceability. At the same time, customised reports and service logs on overloads and operator changes are recorded and made directly available to the user.

An integrated help function is installed in the Maxxis 4 so that even beginners can easily control complicated applications.

The Maxxis 4 weighing controller can either be freely programmed (programming language according to IEC61131) or equipped with the following predefined software applications:

BASIC - for simple weighing tasks

IBC - for single-component filling tasks

BATCH - for complex manual and/or automatic dosing tasks

Applications

  • Fill quantity control
  • Filling and Dosing
  • Formulation
  • Weighing

Certifications

  • EAC
  • OIML

Specifications

Product type

Product handling

  • freely programmable
  • Software solutions for seamless integration into processes of all kinds

IP protection class

  • IP20, device front: IP65

Material

  • Aluminium
