Inspection solutions Vistus® Freefall

Reliable removal of metallic foreign bodies from powders or granulates.

Request this product Download Datasheet

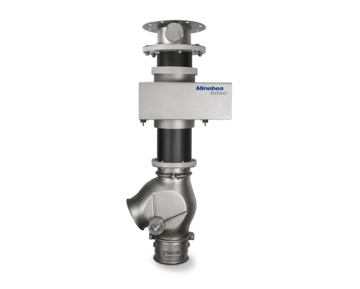

Product picture of a vistus freefall x-ray inspection system

Vistus® metal detection technology

Highest detection sensitivity, multi-frequency technology

True In-Process Validation

Guarantees correct performance testing in the center of the product flow

Effective control

Up to four search coils via one terminal, efficient reject systems

Wide range of configurations

For individual requirements, food-certified quality tubes

Product details Vistus® free-fall metal detection system

The Vistus® free-fall metal detection system guarantees the reliable inspection and removal of metallic foreign bodies from all types of food products in powder or granular form that are transported through a pipe by gravity. These include, for example, milk powder, wheat, nuts or cornflakes. All detectors in the Vistus® series are based on high-quality components and a broad frequency spectrum for maximum detection performance and reliability. Dialogs tailored to different user groups ensure maximum user-friendliness.

The right components can be selected for the operating terminal according to requirements based on the modular principle - consisting of search coil, tube, separator and optional true in-process validation.

All components of the overall system can be used in Zone 22 hazardous areas in accordance with the provisions of Directive 94/9/EC.

Certifications

  • ATEX

Applications

  • Foreign body detection
  • Statistical process control

Specifications

Product type

Product handling

  • In-line inspection

IP protection class

  • IP 65
  • IP 69K on request

Material

  • Housing stainless steel 1.4301



Increase your expertise in foreign object detection

Preventive measures and foreign object management have become increasingly important in the food industry. One reason for this can be found in the changing requirements of food standards. Another reason is the public's increased sensitivity to contaminated and defective products. In the age of the media, product recalls can mean much more than economic losses: in the worst case, they damage the image of the entire company.

Read White Paper

Vistus metal detection technology

  • Maximum detection sensitivity
  • Multi-frequency technology
  • Reliable detection

True In-Process Validation

  • Correct performance validation
  • In the centre of the product flow
  • Validate Ddring operation

Individual configuration

  • Quality pipes certified to food standards
  • Efficient separation systems
  • Minimal installation height
