Load cells PR 6201

Precision pressure load cell from 100 t to 520 t especially for weighing of high load silos, tanks and process vessels.

Request this product Download datasheet

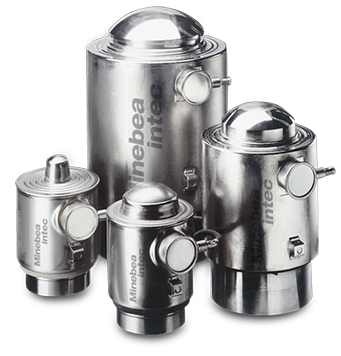

Product image of Compression load cell PR 6201

Pendulum support principle

For optimum compensation of expansion and shear forces

High load range

From 100 t to 520 t

Robust and stable

Years of trouble-free operation without any readjustments

Associated installation kits

FlexLock, certified according to EN 1090

Product details Precision Compression Load Cell PR 6201

The PR 6201 series load cells are specially designed for weighing high load silos, tanks and process vessels. Their unique design principle, in conjunction with the FlexLock installation kits, enables them to compensate for movements caused by mechanical or thermal contraction or expansion of the container or the support structure.

In addition to the high measuring accuracy and reproducibility, this series is characterised above all by unrivalled reliability, robustness and stability.

The pendulum support principle, in conjunction with the patented measuring element geometry, ensures that the force introduced into the sensor is always optimal, thus minimising the influence on the measuring accuracy while at the same time providing a particularly wide overload range, very high reproducibility and perfect linearity.

A pre-adjustment of the entire measuring chain can be carried out without a reference weight. Due to the - matched output - technology, it is possible to replace a damaged load cell without the need for a new calibration. This saves an enormous amount of time during commissioning. As an option, load cells of this series are also available as Ex-version for use in intrinsically safe circuits.

Applications

  • Fill quantity control
  • Filling and Dosing
  • Weighing

Certifications

  • EAC
  • ATEX
  • FM
  • IEC-EX
  • OIML

Specifications

Product type

Product handling

  • Proven pendulum support principle for optimum compensation of expansion and shear forces

IP protection class

  • IP68 / IP69



Material

  • Load cell housing: Stainless steel 1.4301
